Amount of materials for RCC sections

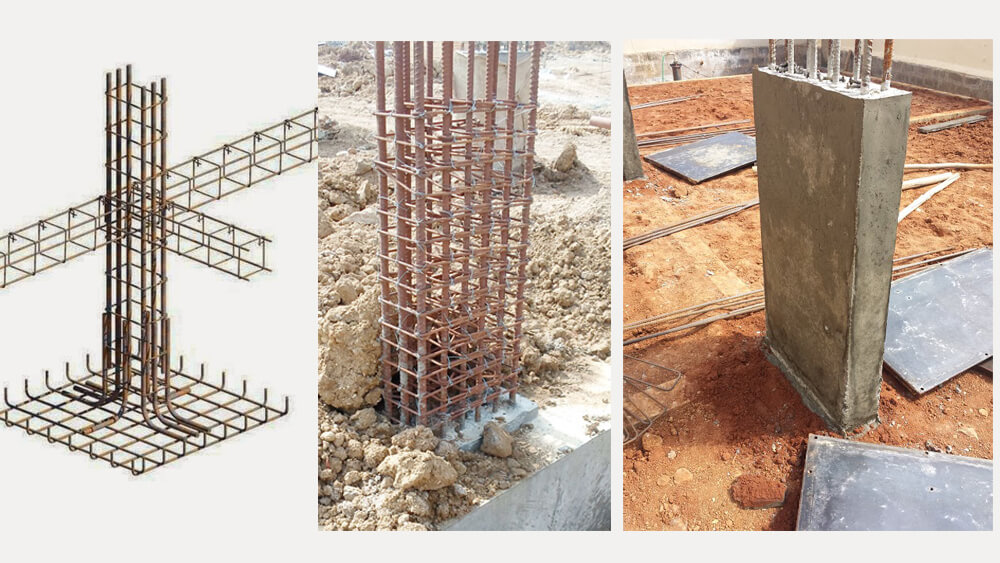

The plan of RCC segments are huge, as in the confined organized structure that is in the forefront advancement the casings are formed by frameworks of segments and bars. A segment is an auxiliary part which is vertical and crucially stacked and presented to compressive powers, and having it's successful length (stature) on various occasions more important than the least cross-sectional component of itself. To agreeably compute the amount of sections, if it's not all that much difficulty follow this method.
Assessment of braced solid works, for instance, foundation, sections, radiates, chunks stage are required for tally of veritable cost of advancement and portion to the transitory specialist. This article offers rules to the assessment including conditions for the calculation of measures of various reinforced solid works.
Assessment of Strengthened Solid Works:
The Amounts can be changed in accordance with the nearest two decimals. Concrete in Auxiliary people, for instance, sections, Shafts and pieces will each be assessed autonomously.
No Derivations will be made for these:
Opening up to 0.1 m2
Volume required by help.
Volume required by pipes, conductors, sheathing, etc not outperforming 100cm2 each in cross-region.
Molds, spills forming, chamfers, spreads balanced or made sure about focuses, beds, wrinkles and discounts up to 10 cm in periphery.
Assessment of Cement in Footings:
Volume of cement = L x B x D for Rectangular and Square balance. For Trapezoidal Balance, Volume of Cement is resolved in two areas. Base Rectangular piece is resolved freely and the Trapezoidal volume is resolved autonomously.
Rectangular Volume = L x B x D
Trapezoidal Volume V= H/3 (A1 + A2 + SQRT(A1 + A2) )
Where A1 and A2 is the locale of top and base square shapes, H is profundity of balance.
Complete Volume = Rectangular Volume + Trapezoidal Volume
Where V= Volume; h= stature;
Assessment of Cement in Segments
Segments will be assessed from head of Segment base to underside of first floor section and thusly from head of floor piece to underside of floor chunk above. In the event that there ought to emerge an event of Sections for level chunks, flare of segment will be joined with segment for Estimation.
When your prepared to examine the solid turn of events and point by point drawings, you can be viably prepared to find
3. Quantities of bars
No's of bar for chunks and stirrups is by suggestion related to the range and Dividing.
No's of bar = ((Length - 2*clear spread)/spacing)+1
(changed in accordance with next full number)
For the stirrups, you are needed to give extra pieces for catches. Regularly 10d is grasped for it, anyway to know it accurately, one can follow the code book for bar bending schedule IS: 2502, demonstrating the Safe haven length (it even has the lengths to be deducted when the rebar is twisted).
Progression length is regularly decided in the drawings and crucial expansions must be joined. Resulting to finding the hard and fast cut Length of the bar, we generally make a table which basically looks like underneath.
2. Cut length
4. Unit Weight
5. Complete Weight
Unit Weight can be found adequately by taking steel thickness as 7850kg/cum.
Full scale Wt = Unit Wt * No's * Cut length
Above all you learn the amount of Cubic Yards of Cement in all Pieces, Sections and Shafts which is an essential. Try not to disregard to join the foundation pads or bases or beams.When you have chosen the all out proportion of Cubic Years in the entire structure expands the total Cubic Yards by the factor of 125 Lbs, 100 Cubic Yards of solid will use 12500 Lbs of Steel uphold.
In case you need the perfect sums, as an issue of first significance plans are to be made and drawings are to be prepared..There after bar bowing schedules are to be prepared and from that you can find the amount of steel for slab,beam and segment
If you have to find the gathered amount of such steel, leading from the given drawing figure the volume of cement for all the slabs,beams and sections freely. The volume of cement of piece kg will be the derived amount of steel for slab.Please note that this 80 kg of steel is for one cum of cement of section
Also increment by 100 kg for each cum of cement for the pillar. For section, increment by 120 kg for each cum of segment concrete. To do that, the fundamental plan of the R.C. section/segment/pillar should be done.
In case it is (or once it's done) you can calculate the locale of steel in the cross zone (you can take a 1m or 1ft strip with respect to the piece), and increment it by the extents/statures, and you'll have the volume. Copy that by the unit weight of steel (7850 kg/m3), and you'll have weight.
Moreover, you should take into estimation any stirrups or stays that may require extra rebar length.
