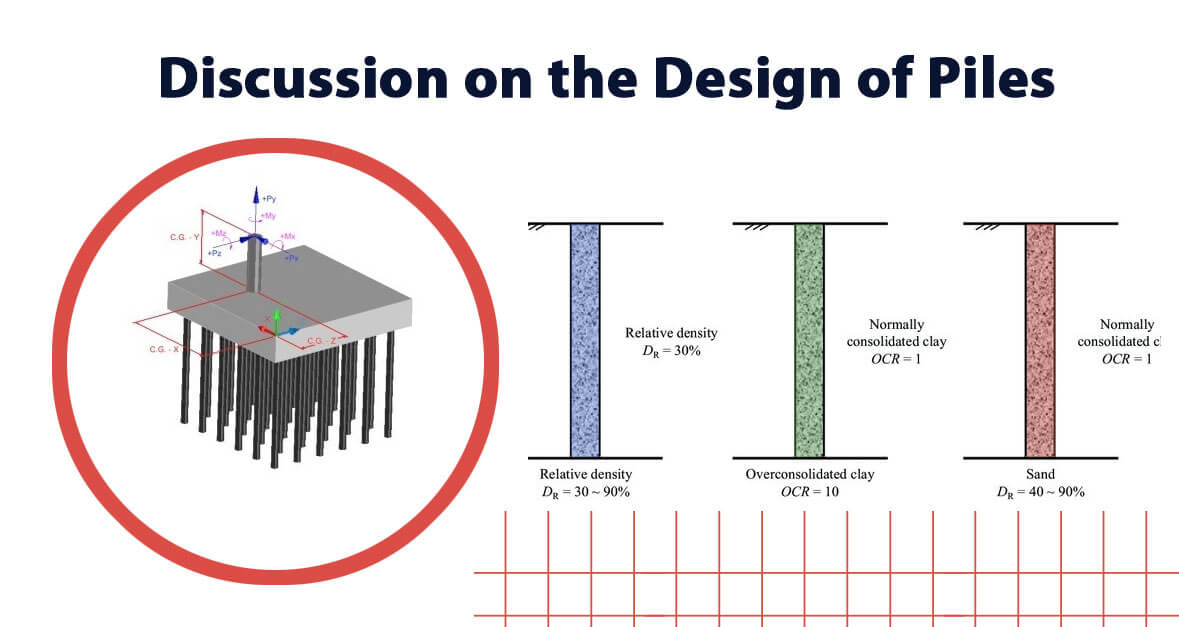

Discussion on the Design of Piles

Tweet

This article discusses about the planning of piles, that is, cast-in-situ bored single piles. For deep foundation it's the bored piles which are more commonly used all around, this takes place when axial capacity can't be achieved through shallow foundations.

For the designing of piles there are variety of methods available. Skin friction and end bearing calculations are wiped out the planning of piles in any method that's applied. Upon the calculation of the stated parameters, evaluation of capacity of pile are often done very easily.

In this article we aren't considering the calculation of negative skin friction and normal skin friction of soil.

Nonetheless, during the evaluation of the pile capacity the effect of the soil skin friction are often taken in to account.

It is especially important to think about the skin friction during the calculation of pile capacity if there's negative skin friction which may cause the reduction of the pile capacity. during this article we aren't getting to discuss about the effect of the skin soil skin friction.

As per usual it's from the geotechnical investigations that the the allowable end bearing and skin friction is obtained.

It is through the report that internet allowable end bearing and allowable skin friction are often obtained.

If within the geotechnical investigation report the last word end bearing and supreme skin friction is providedthen it's important to convert them into allowable capacities as they're compared with the working loads which also are called the service a lot of the structure.

Given below are the equations for Evaluating end Bearing and Skin Friction End Bearing Capacity = (net allowable end bearing) x (cross-sectional area of pile base) Skin Friction Capacity = (allowable skin friction) x (surface area of pile in socket length) To calculate the area of the pile in socket length you've got to calculate it by multiplying the socketing length(which is that the length of the pile within the fresh rock) with the perimeter length of the pile.

It is usually considered that the piles are socketing depth round the diameter of the pile, that is, until it's specified otherwise within the geotechnical report.

Geotechnical capacity of pile = End Bearing Capacity + Skin Friction Capacity

The geotechnical capacity of the pile is compared with the structural capacity of the pile to get the load-carrying capacity of the pile.With the assistance of structural analysis the structural capacity of the pile are often calculated.

The design of thepile are often sort of a column which may carry the axial load within the soil and therefore the rock.It is always advised to conduct a structural check of the pile if and when the piling is completed in very soft soils like peat, the buckling effect must be considered within the very soft medium.As a general rule, the equation given below is employed to guage the structural capacity of piles.

Structural Capacity of Pile = 0.25 fcu Ac
Here,fcu = is the characteristic cube strength of concrete
Ac = Cross-section area of the pile

Design Capacity of Pile = Lesser of Structural Capacity and Geotechnical Capacity
