LH Logismiki Steel Connections Software

Civilax has recently released the version of their popular LH Logismiki Steel Connections Software. it's an excellent handy tool to style connections between steel structural members.

The software works following the ecu code of building. More precisely, it works consistent with the Eurocode 3 / prEN 1993-1-8: 2003 / Part 1.8: Design of steel structures. Which is, Design of joints (Greek version 5 May 2003).

Not a standalone software intrinsically , the LH Logismiki Steel Connections Software interacts with the FESPA application so as to get information a few structure.

It connects to the FESPA to urge all the knowledge necessary to calculate the maths of a joint. This includes the geometry of the members in question, and their action effects.

Moreover, the LH Logismiki interacts with FESPA to make a report of the work wiped out calculation, to make drawings for an equivalent , and for other documentation.

However, this doesn't mean that the LH Logismiki is totally dependent upon FESPA. If the user isn't curious about reports and drawings, and may supply all the info manually, then she will in fact use the program as standalone.

The "Design of Joints" module are often used independently. By using the geometry and cargo characteristics, a user can perform the tasks without requiring connection to FESPA.

Features of LH Logismiki: The exceptionally performing LH Logismiki Software calculates the maths about the connections between members of cross-section types during a structure. Specifically, it works on type-H and type-I members.

The software does:

Moment corrections:

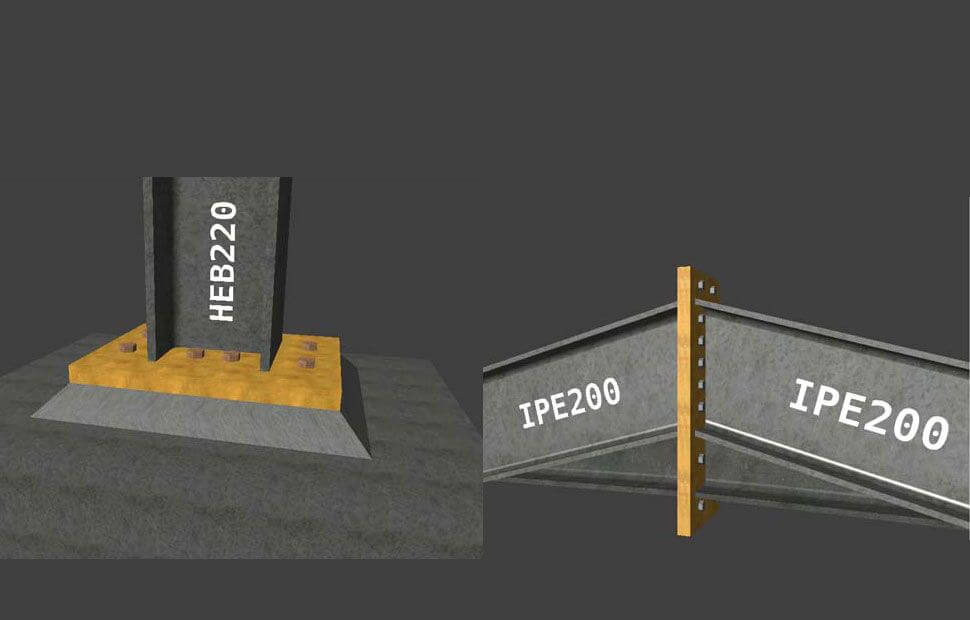

  1. Bolted beam to column connections with end plate
  2. Bolted beam to beam connections with end plate
  3. Column base connection to concrete fundament with anchors.

Shear connections:

  1. Bolted beam to column connections with steel angles
  2. Bolted beam to column connections with steel angles
  3. when the beam is connected to the web of the column
  4. Bolted beam to beam connections with steel angles.

Tension connections:

  1. Bolted or welded connections of diagonal members.
  2. Technical details: The LH Logismiki Steel Connections v1.12 works during a windows environment. it's available at the developer's site here: www.civilax.com/
  3. The software is sort of small, only 45 megabytes in download size. you'll download it as a RAR file.
  4. The latest version of LH Logismiki is v1.12.0.32. it had been released on December 11.
  5. However, you'll got to register at the location so as to urge the download link. Once you've got become a member, just refresh the page then you'll see the direct download link.
