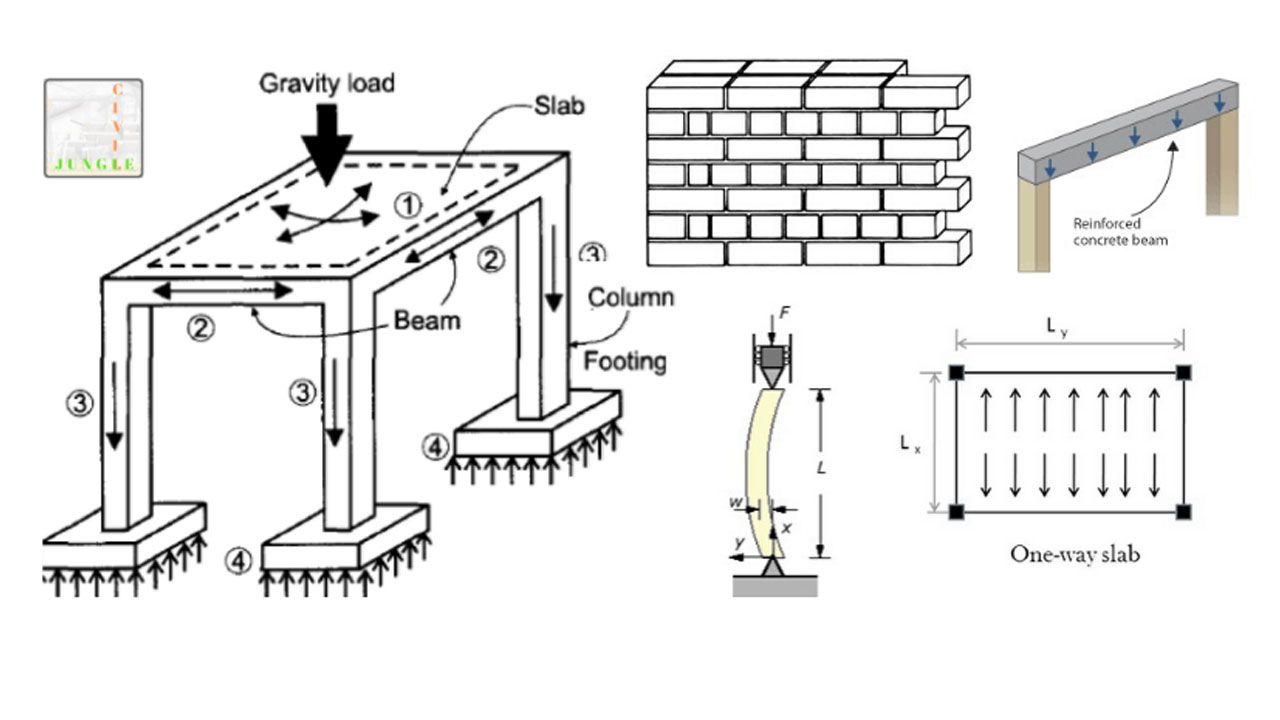

# Calculation Of The Load Bearing Capacity Of Reinforced Cement Concrete

Tweet## What is Load Bearing Capacity

In the designing of the Reinforced Cement Concrete structure, Calculation of the design load is the primary step.

Bearing capacity of a foundation is the maximum load that can be applied on a foundation, before failure or uncontrolled deformations occur.

Imposed loads varies from approximately 1.5 kN/m2 (153 kg/m2) in domestic buildings to approximately 10 kN/m2 (1053 kg/m2) in heavy industrial areas. 500 kg/m2 is typical for office, storage space and similar.

The Load-bearing Capacity calculation involves measuring the concrete's member's existing dimensions and estimating the reinforcement area and concrete strength. Additionally, the load acting on the structural area needs to be calculated.

The next following step is to calculate the beams' capacity using the equation of strength design method.

Finally, the designer can evaluate the beams load carrying capacity

h2>Types Of Loads on StructuresThe different types of Loads acting on Structures for buildings and other structures can be broadly classified as

- Vertical loads,
- Horizontal loads,
- Longitudinal Loads,

### The Vertical Loads are again subdivided into

- Dead Load
- Live Load
- Impact Load

### The Horizontal Loads are divided into

- Wind Load
- Earthquake Load

### Longitudinal Loads

The Longitudinal Loads comprises of tractive or braking effort.

## Calculation of Load Bearing Capacity In Reinforced Cement Concrete Structure

### Assumptions:

- Slab is supported on all edges e.g. with the help of beams.
- Slab can carry any kind of loading like point load, UDL, etc.
- We know the drawing details of slab-like no. Of steel bars and type of concrete.
- We just want to know the theoretical capacity of the slab not actually otherwise we may need to do the plate load test which is destructive in nature.

Let's calculate the capacity of Slab

Step 1 - Find out the no. Of bars and their dimensions in one meter span of slab in shorter direction.

Step 2 - find out the grade of concrete.

Step 3 - using the IS 456 page 90 formula, calculate the area of steel present in tension and the thickness of slab and thereafter find the moment of resistance of slab.

fck = Grade of Concrete

Fy = Grade of Steel

B = width of Beam

D = Effective Depth Of Beam

xu= Depth of Neutral Axis from top of Beam Section

xu,lim=limiting depth of neutral axis (NA) from top of beam section for balanced section

Ast=area of steel

Compressive force , C=0.36fckBxu

Tensile force, T = 0.87fyAst

Lever arm, LA=d-0.42xu

Moment of Resistance, MOR=C LA=T LA

MOR=0.36fckBxu(d-0.42xu)

MOR=0.87fyAst(d-0.42xu)

The Above general formulae for MOR

For under-reinforced section, xu<xu,lim

xu,lim depends on fy & d only.

Step 4 - After knowing the Moment of resistance you can find out the load on the beam as you know the span of the beam because

Moment = force perpendicular distance

## Conclusion:

This article summarizes different types of Loads on structures and an easy step by step Methods to calculate the Load Bearing Capacity of Reinforced Cement Concrete structures.
